Installing the head restraint

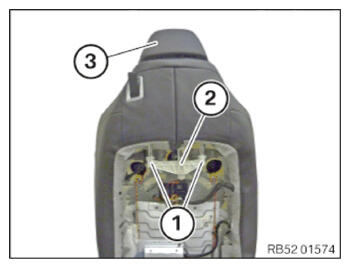

• Insert the head restraint (3)  .
• Feed the head restraint (3)  into the drive motor (2)  , until the clamps (1)  are engaged.

  The clamps (1)  must engage noticeably.

• Check the correct fit of the head restraint (3)  in the clamps (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  Check

• Check the correct locking of the head restraint by means of a pull-off test.
• Pull the head restraint upwards by applying hand force.

  Result

  » Head restraint cannot be detached.

  Measure

  • Continue with the installation.

Follow-up work

• Refer to INSTALLING THE BACKREST COVERING WITH THE CUSHION FOR THE FRONT SEAT .
• Refer to INSTALLING THE REAR PANEL ON THE FRONT SEAT BACKREST .
