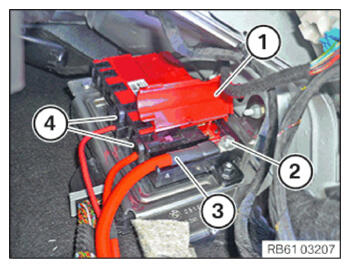

Installing the positive battery cable power distribution at the rear

• Feed in power distribution of positive battery cable (2).
• Tighten nut (1).
  TIGHTENING TORQUES SPECIFICATION



  Power distribution box
  Plastic nut with flange	tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

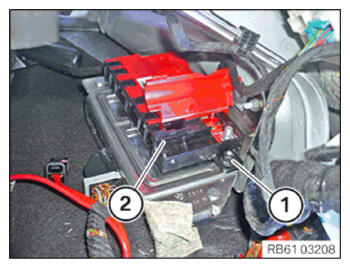

• Tighten the positive battery cable (3) using the nut (2).
  TIGHTENING TORQUES SPECIFICATION



  Positive battery cable
  Positive pole screw	tightening torque	15 Nm

• Close the cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
• Refer to INSTALLING THE TOP LUGGAGE COMPARTMENT TRIM PANEL .
• Refer to INSTALLING TRUNK COMPARTMENT LIGHT .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
