When replacing the starter motor: Remount components

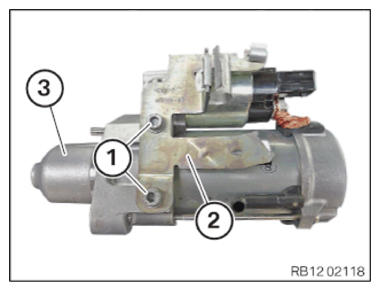

• Loosen screws (1)  .
• Detach holder (2)  from starter motor (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the starter motor (3).

  Parts:  Starter motor

• Position holder (2).
• Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Holder to starter motor
M6x14	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
