Installing the drive for the convertible top latch

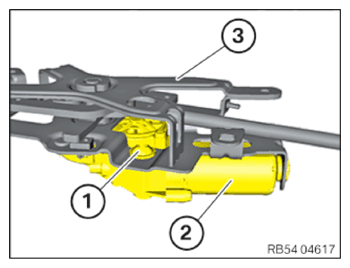

Feed in and position the engine (2) on the engine for the convertible top latch (3).
Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

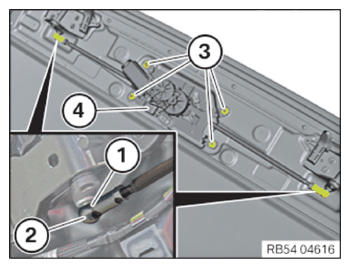

Position the engine for the convertible top latch (4).
Tighten nuts (3).
Clip in the ball heads (2) and close the retaining clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.

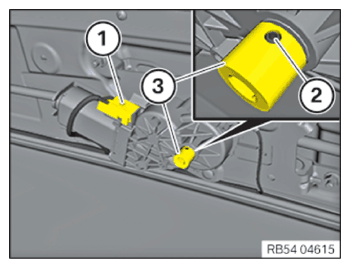

Connect the plug connection (1).
Insert the adapter for emergency operation (2).
Mount the locking splint (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
