Installing C-pillar trim panel

Check

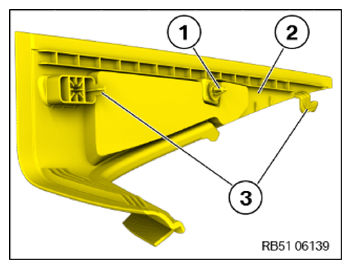

• Check clip (1) on the C-pillar trim panel (2) for damage, replace if necessary.
• Check guides (3) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

The guide is damaged.

Measure

• Replace the C-pillar trim panel.

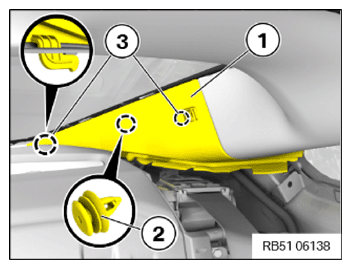

• Thread in C-pillar trim panel (1) in the guides (3) to the rear.
• Clip in the clip (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

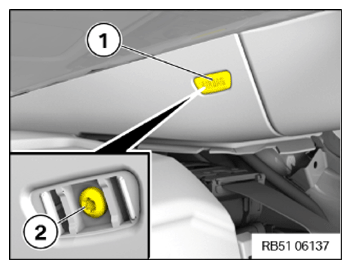

• Tighten down screw (2).
  TIGHTENING TORQUES SPECIFICATION



  C-pillar trim panel on holder
  Oval-head screw M6	Tightening torque	3 Nm

• Clip in the cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to PARTIALLY INSTALLING THE SEAT BELT FINISHER STRIP .
• Refer to INSTALLING REAR TRIM PANEL .
• Refer to INSTALLING THE REAR SEAT .
• Refer to INSTALLING THE INNER DOOR SILL COVER STRIP .
