Install the rear vertical acceleration sensor

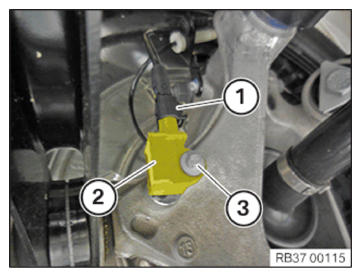

- Position the vertical acceleration sensor (2).
- Tighten down screw (3).
TIGHTENING TORQUES SPECIFICATION
| Vertical acceleration sensor to wheel carrier |
| M6 |
tightening torque |
10 Nm |
- Connect connectors (1) and lock.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Follow-up work
