Installing washer fluid reservoir

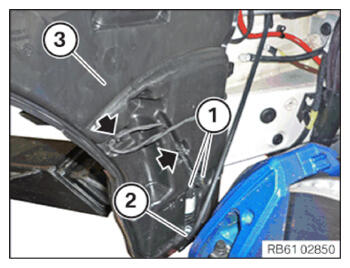

• Connect all connectors (1).
• Clip the cable into the washer fluid reservoir (3) (arrows).
• Connect the hose pipe (2) and lock it.

  Courtesy of BMW OF NORTH AMERICA, INC.

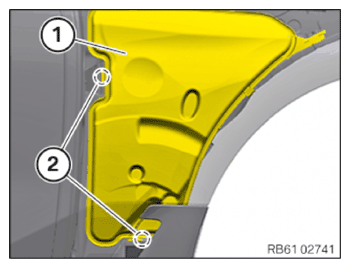

• Feed in the washer fluid reservoir (1) to the back in the holders (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Washer fluid reservoir
  	tightening torque	8 Nm

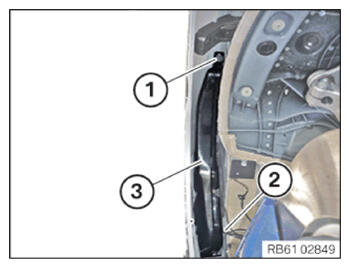

• Clip the hose pipe (2) into the washer fluid reservoir (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

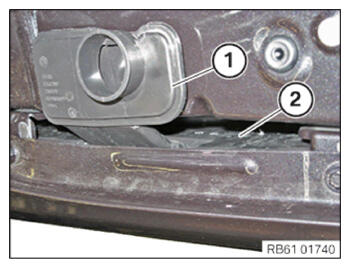

• Clip the filler channel (1) downwards into the washer fluid reservoir (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to INSTALLING FRONT LEFT OR RIGHT WHEEL .
• Refer to INSTALLING THE MOUNT OF THE HOOD SEAL ON THE RIGHT .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
