Securing the rear left seat belt retractor

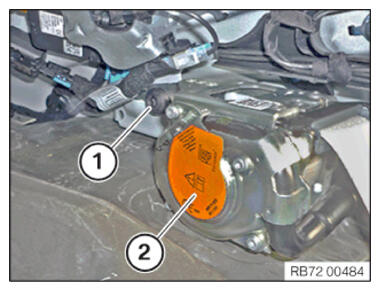

- Guide in and correctly position the rear seat belt retractor (2).
- Replace the screw (1).
Parts: Screw
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Rear seat belt retractor to body M10

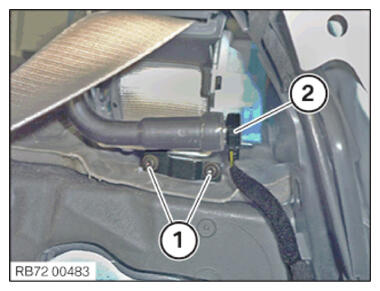

Replace screw.Tightening torque 42 Nm - Tighten the screws (1).TIGHTENING TORQUE SPECIFICATIONS
Additional connection of rear seat belt retractor to body M6 screw Replace screw Tightening torque 4.5 Nm - Connect connectors (2) and lock.
