Securing rear left and right spring strut shock absorbers on the wheel carrier
NOTE:
Perform the steps on the right and left side.
Securing rear spring strut shock absorber on the wheel carrier
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Tighten the screw connection in the NORMAL POSITION .

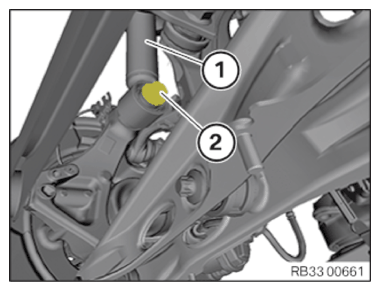

- Position spring strut shock absorber (1) on the wheel carrier.
- Replace the screw (2).
Parts: Screw
- Tighten screw (2) in the NORMAL POSITION
.TIGHTENING TORQUE SPECIFICATIONS
Rear spring strut to wheel carrier M16
Replace screw.
Tighten in normal position.Tightening torque 250 Nm
