Removing underbody planking on left and right side
Removing underbody planking on left and right side
NOTE:
Perform the steps on the right and left side.

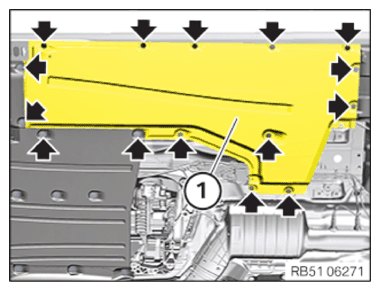

Remove side underbody planking
Unscrew all bolts and nuts (arrows).
Remove the underbody planking (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
