Removing the speaker trim at the dashboard

NOTE: RISK OF DAMAGE
Damage of high-quality surfaces.
Plastic wedges can damage high-quality surfaces.

• Protect surfaces from damage.

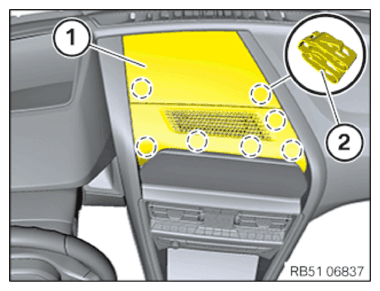

• Lever out the speaker trim (1) upwards with the special tool 0 494 190 (64 1 030)  from the clamps (2).

NOTE: Position the special tool in the left and right corners of the CID.

• Feed the speaker trim (1) out of the guides from the front to the back and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
