Removing the jet chain partially
Removing the jet chain partially

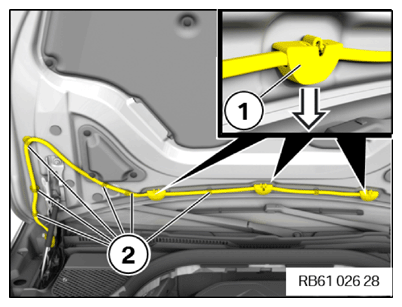

Unclip the spray nozzles (1) in the direction of the arrow.
Unclip the jet chain from all holders (2) on the hood.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
