Removing the front thrust field or the underbody protection of the steering gear

Precondition

Underbody protection in the front partially released or removed.

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

NOTE: TECHNICAL INFORMATION
Driving without thrust field is not permissible.

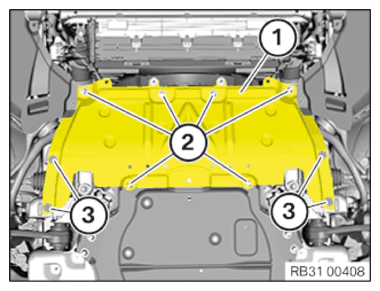

Guide out and remove the front thrust field (1).

Courtesy of BMW OF NORTH AMERICA, INC.

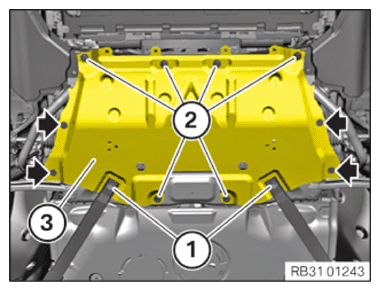

Version B:
Loosen screws (1).

Remove screws (arrows).

Loosen screws (2).

Guide out and remove the front thrust field (3).

Courtesy of BMW OF NORTH AMERICA, INC.

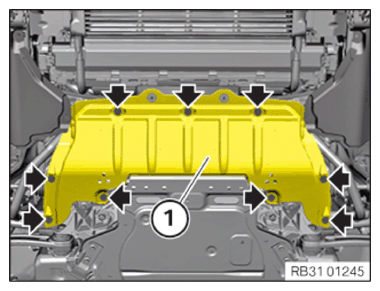

Version C:
Remove screws (arrows).

Guide out the underbody protection of the steering gear (1) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
