Removing the cowl upper part in the center
Removing the cowl upper part in the center
Version with mild hybrid technology:

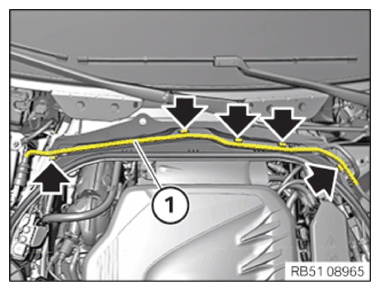

Unclip the line (1) from the holders (arrows).
Courtesy of BMW OF NORTH AMERICA, INC.

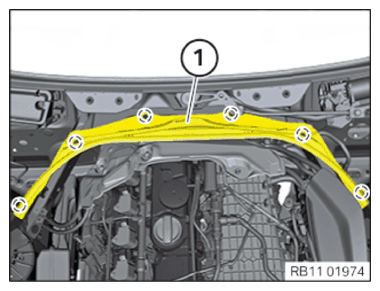

Unscrew the bolts in the marked areas.
Remove the center cowl upper part (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
