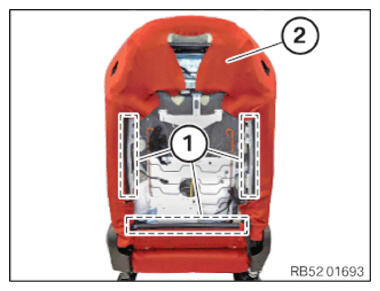

Removing the backrest cover with the cushion
- Unclip the edge stripping (1) in the marked area with a suitable tool.
- Carefully detach the seat cover (2) from the backrest frame at all other attachment points.
Remove side airbag

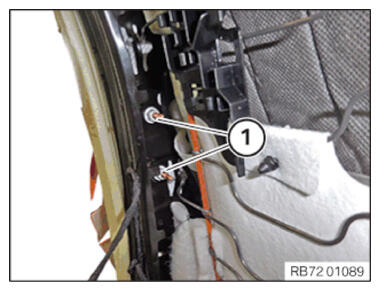

- Loosen nuts (1).

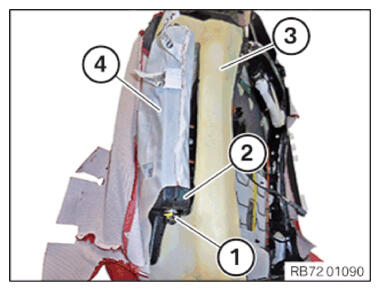

- Carefully fold out the side airbag (2) from the cushion (3).
- Carefully guide out the side airbag (2) from the pocket in the cover (4).
Ensure that the stud bolts of the side airbag (2) do not damage the pocket in the cover (4).
- Unlock and disconnect the plug connection (1) (observe additional information).

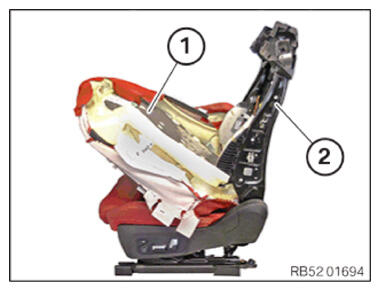

- Carefully detach seat cover with cushion (1) from seat frame (2).
- Unlock any existing plug connections and disconnect them.
