Removing radial shaft seal of the bearing bracket
NOTE:

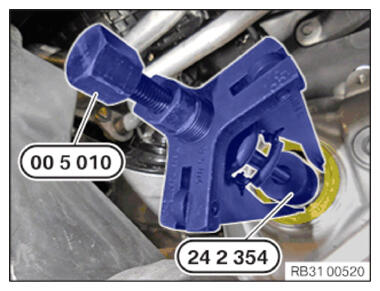

The figure shows the procedure for the front axle differential. The procedure for the bearing bracket is identical.
- Remove the radial shaft seal
- Pull out radial shaft seal with the aid of special tools 0 490 466 (00 5 010)
and 0 495 597 (24 2 354).
