Remove the brace for the rear bumper

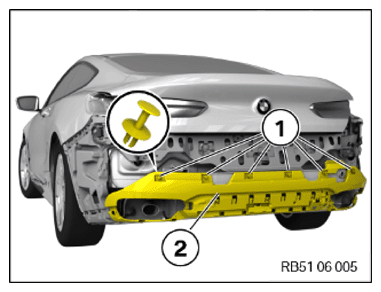

• Release expanding rivet (1) and remove the brace for the rear bumper (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock and disconnect all plug connections, according to the equipment.

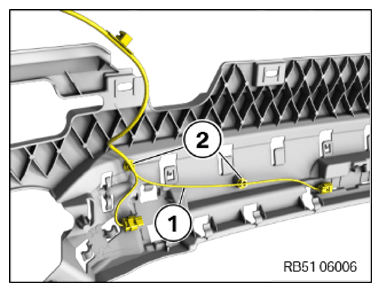

• Release vehicle wiring harness (1) with the holders (2).
• Remove the brace for the rear bumper.

Courtesy of BMW OF NORTH AMERICA, INC.
