Remove the air conditioning compressor (engine removed)

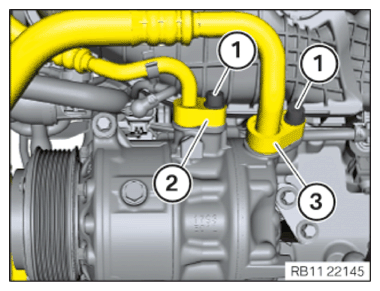

• Loosen screws (1).
• Remove the pressure line (2).
• Remove the intake pipe (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

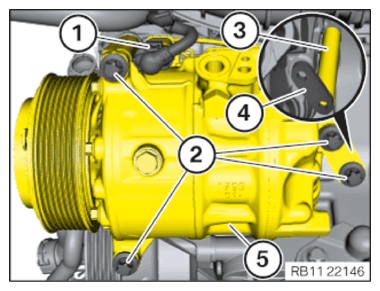

• Unlock plug connection (1) and disconnect.
• Loosen screws (2).
• Remove the latch (4).
• Remove the spacer sleeve (3).
• Remove air conditioning compressor (5).

Courtesy of BMW OF NORTH AMERICA, INC.
