Remove headlight
Remove headlight

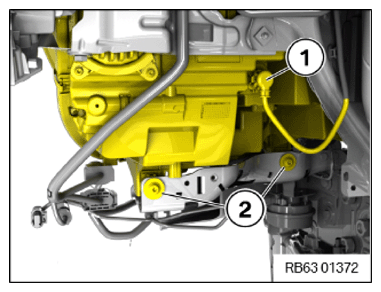

Unlock plug connection (1) and disconnect.
Loosen screws (2).
Courtesy of BMW OF NORTH AMERICA, INC.

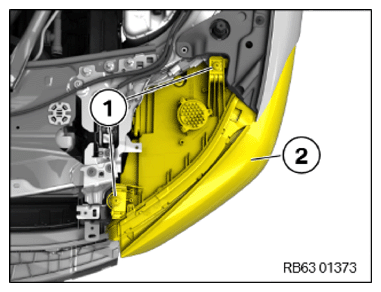

Loosen screws (1).
Slide the headlights (2) out forwards.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
