Releasing the wiring harness of the active stabilizer
Releasing the wiring harness of the active stabilizer

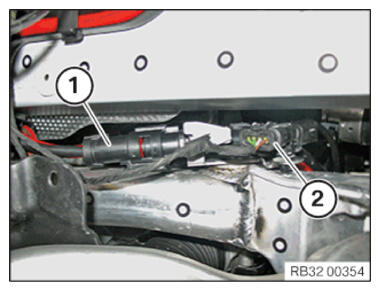

Unlock and disconnect the plug connections (1) and (2).
Courtesy of BMW OF NORTH AMERICA, INC.

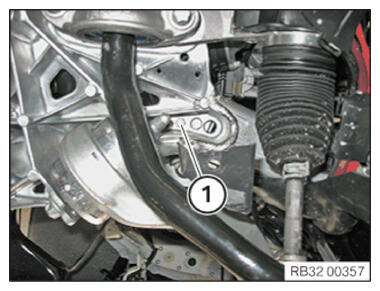

Unscrew the bolt (1) on the front axle support and slide the wiring harness mounting to the side.
Courtesy of BMW OF NORTH AMERICA, INC.

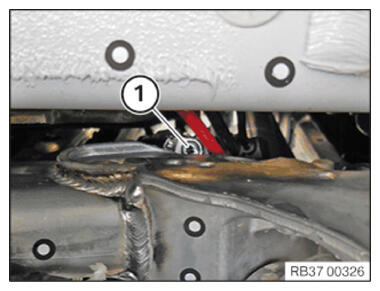

Release the screw (1) and thread out the wiring harness.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
