Releasing the spring strut shock absorber at the rear left and right from the wheel carrier
NOTE:
Perform the steps on the right and left side.

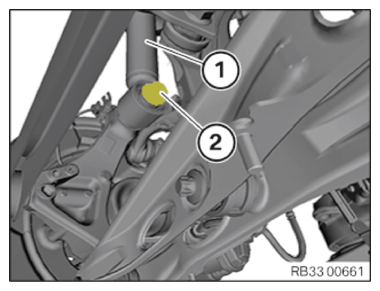

Releasing the rear spring strut shock absorber from wheel carrier
- Release the screw (2) on spring strut shock absorber (1).
