Releasing air conditioning compressor

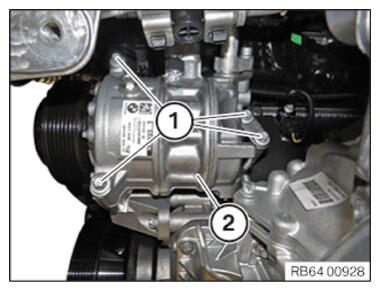

Loosen screws (1).
Release air conditioning compressor (2) carefully from the support console and tie it up.

Courtesy of BMW OF NORTH AMERICA, INC.

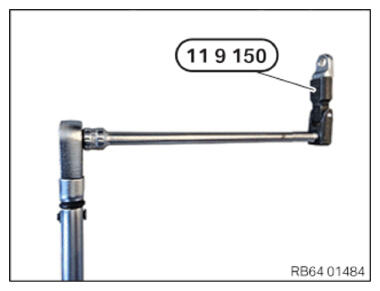

Prepare special tool 0 493 751 (11 9 150) as shown.

Courtesy of BMW OF NORTH AMERICA, INC.

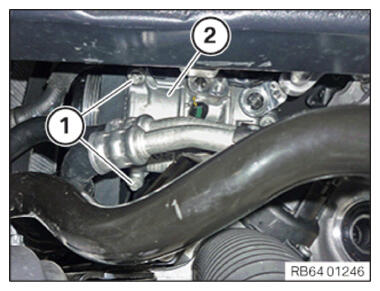

Release the screws (1) on the air conditioning compressor (2).

G15701472

Courtesy of BMW OF NORTH AMERICA, INC.

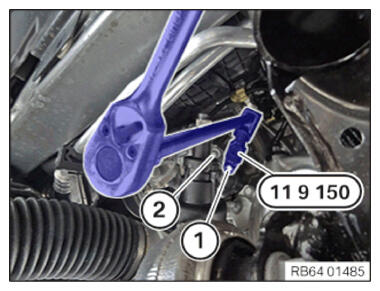

Slacken the screw (1) at the rear of the air conditioning compressor using the special tool 0 493 751 (11 9 150) .
Release screw (2) using special tool 0 493 751 (11 9 150) .

Courtesy of BMW OF NORTH AMERICA, INC.

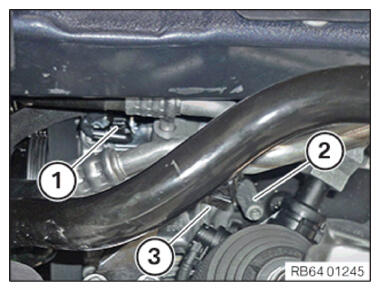

Unlock the connector (1) on the air conditioning compressor and disconnect it.
Slide the holder (2) to one side.
Pull down air conditioning compressor (3) until the refrigerant lines are accessible from the wheel well.

G15701474

Courtesy of BMW OF NORTH AMERICA, INC.
