Partly fastening the coolant expansion tank for the low-temperature coolant circuit

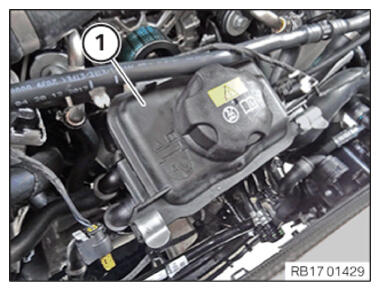

• Feed in the coolant expansion tank (1) for the low-temperature coolant circuit and position it.

  Courtesy of BMW OF NORTH AMERICA, INC.

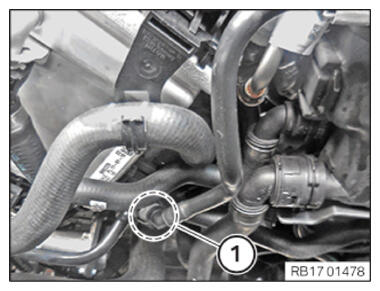

• Clip in the coolant ventilation line (2) in the clamp in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

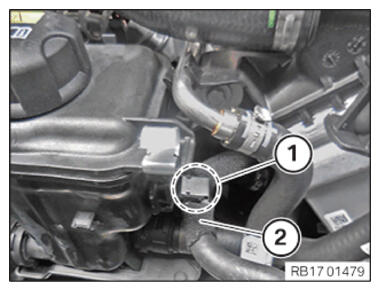

• Connect and lock tank vent line (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

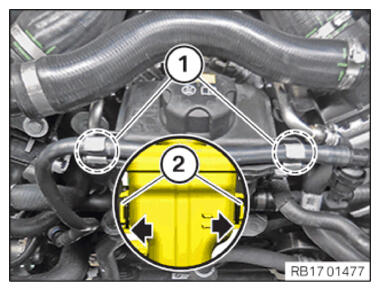

• Engage the clamps (2).
• Feed in the tank vent line in area (1) and position it.

Courtesy of BMW OF NORTH AMERICA, INC.
