Partially removing the rear seat belt retractor
Partially removing the rear seat belt retractor

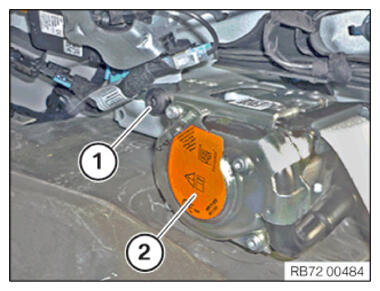

Loosen screws (1).
Unlock plug connection (2) and disconnect.
Courtesy of BMW OF NORTH AMERICA, INC.

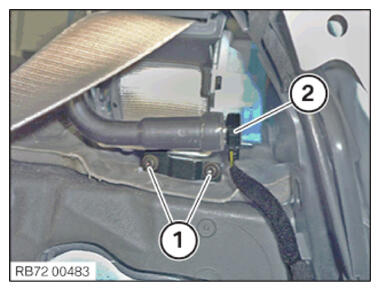

Loosen screw (1).
Place the rear seat belt retractor (2) to one side.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
