Partially installing the Install luggage compartment wheel arch trim panel on right

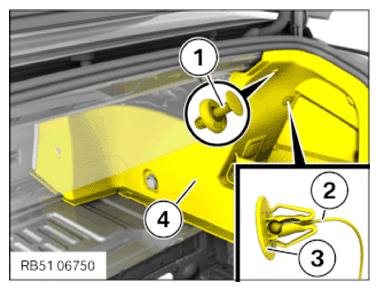

- Feed the right luggage compartment wheel arch trim panel (4) in the rear area under the sealing lip of the tailgate seal.
- Attach Bowden cable (2) and clip in the emergency release (3).
- Fasten expanding rivet (1).
Installing the emergency release handle for the tailgate (additional work for US version)
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

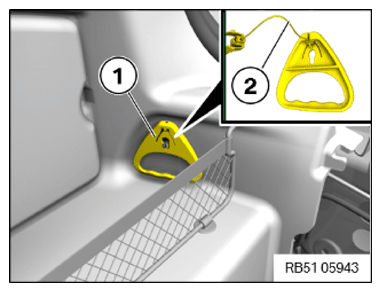

- Attach the Bowden cable (2).
- Fasten the emergency release handle (1) for the tailgate to the holder.
