Loosening the universal joint from the steering gear
Loosening the universal joint from the steering gear

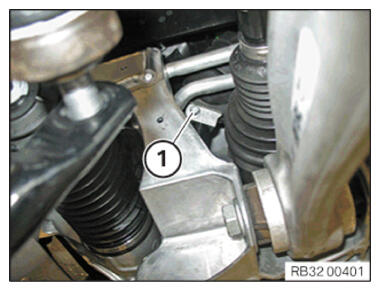

Release screw (1) at the side of the wheel well.
Pull the universal joint down from the back through the front subframe from the steering gear.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
