Installing the upper seat belt in the rear left or right

NOTE: TECHNICAL INFORMATION
Clean all belt fittings  with microencapsulated male and female threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength  .
The screw connection must be completed within 10 minutes as hardening begins after this period.

NOTE: Description is for left component only. Procedure on the right side is identical.

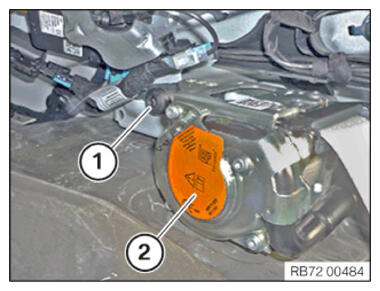

• Guide in and correctly position seatbelt retractor (2).
• Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Rear seat belt retractor to body
M10 Replace screw.	Tightening torque	42 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

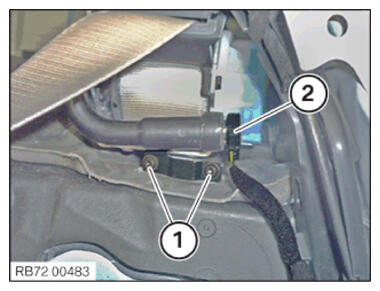

• Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Additional connection of rear seat belt retractor to body
M6 screw Replace screw	Tightening torque	4.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (2) and lock.

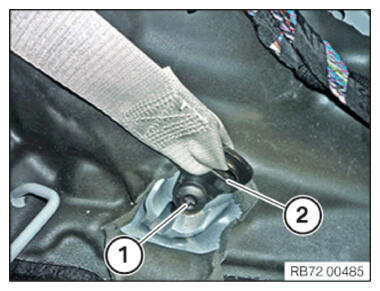

• Feed the seat belt end fitting (2) into the seat belt finisher strip and position it correctly.
• Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

End lining to body
M10 Replace screw.	Tightening torque	42 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
