Installing the front bottom left and right cover
NOTE:
Description is for left component only. Procedure on the right side is identical.

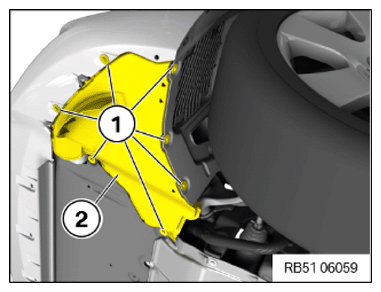

Installing bottom front cover from the side
- Guide in cover, front, bottom, side (2) front, bottom.
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Front lower side cover on front bumper cover | ||
|---|---|---|
| Hexagon screw for thermoplastic | Tightening torque | 3 Nm |
