Installing the cover in the engine compartment at the right rear
Remove the battery cover
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.

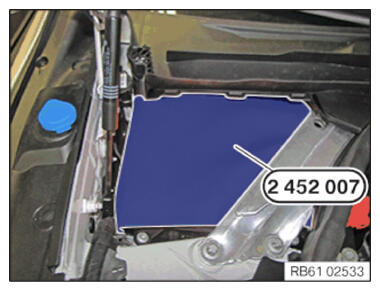

- Remove the special tool 2 452 007
from the battery.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

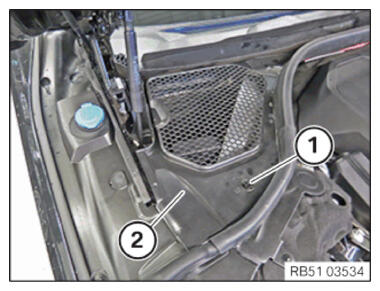

- Install the cover (2).
- Lock the lock (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
