Installing seat cover with cushion for passenger seat

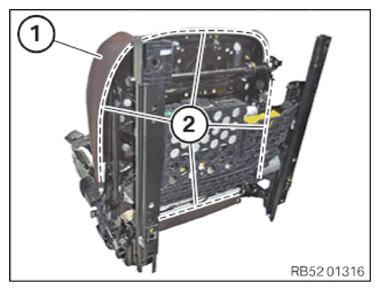

- Insert seat cover (1) with the cushion and position.
- Attach seat cover (1) in the areas (2).
- If necessary, connect existing plug connections and clip in cable clips.
Fastening the ground cable of the seat occupancy mat (CIS)
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

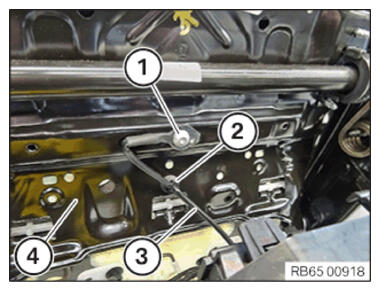

- Correctly position the ground cable (3) for the seat occupancy mat on the seat mechanism (4).
- Close the cable clip (2).
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Ground cable of the seat occupancy mat (CIS) on seat | ||
|---|---|---|
| Screw | Tightening torque | 4.5 Nm |

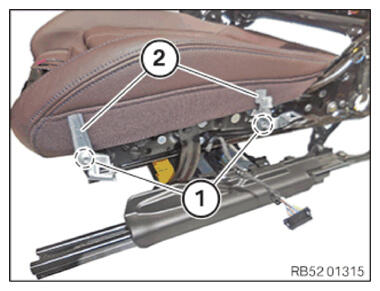

- Position holder (2) and tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Seat trim to seat frame | ||
|---|---|---|
| Sheet metal screw | tightening torque | 2.5 Nm |
