Installing luggage compartment wheel arch trim panel (partially removed)
Installing luggage compartment wheel arch trim panel (partially removed)

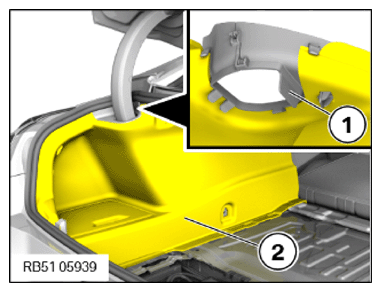

Feed the left luggage compartment wheel arch trim panel (2) in the rear area under the sealing lip of the tailgate seal.
Install hinge cover (1).
Courtesy of BMW OF NORTH AMERICA, INC.

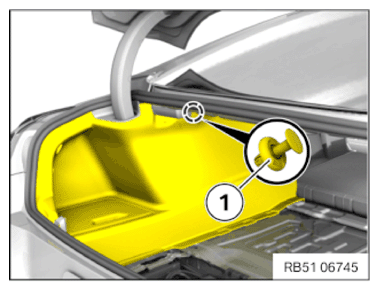

Fasten expanding rivet (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
