Installing both the roof trim strips
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing the roof trim strip
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
Replacing the clamps for the roof trim strip (equipment version with CFRP roof)
NOTE:
TECHNICAL INFORMATION
The temperature of the roof skin and the clamps must be at least 20°C. The outer roof skin and the clamps can, if necessary, be warmed up with a hair dryer to maximum 40°C.
The temperature of the roof skin and the clamps must be at least 20°C. The outer roof skin and the clamps can, if necessary, be warmed up with a hair dryer to maximum 40°C.

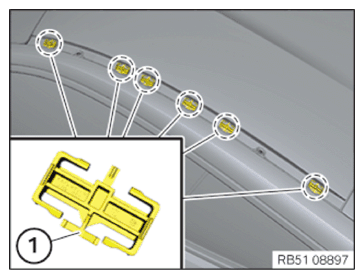

- Remove all clamps (1).
All the positions of the clamps are marked with marker lines.
- Completely remove all residue adhesive tape.

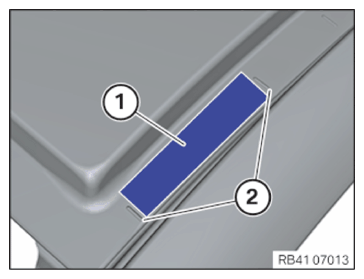

- Make sure that all bonding surfaces (1) on the roof outer skin are marked with marker lines (2).
- Clean bonding surfaces (1) with the solvent cleaner and a microfiber cloth.
CONSUMABLE SPECIFICATIONS
| Cleaning agent R2 | 500 ml | 83190417324 |
- Prime bonding surfaces (1) and give a final wipe immediately with a dry microfiber cloth.
ADHESIVE SPECIFICATIONS
| Aktivator -205 | 250 ml, Bottle | 83190030155 |
- Allow bonding surfaces (1) to dry for 2 mins.
- Replace the clamps (1).
Parts: Clamp
- Detach the protective film from the clamp (1).

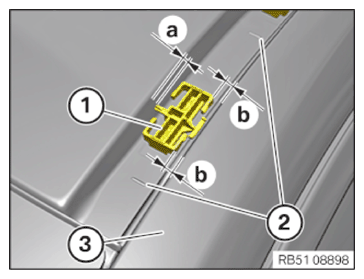

- Position clamp (1) in the center between marker lines (2).
Dimension (a) = 1 mm
- Ensure that clamp (1) is aligned parallel to roof frame (3).
Dimension (b) = Dimension (b)
- Press the clamp (1) with both thumbs firmly and completely for at least 5 s.
NOTE:
Stronger pressure and longer time increase the firmness.
- Repeat the steps with all other clamps.
NOTE:
TECHNICAL INFORMATION
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE .
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE .

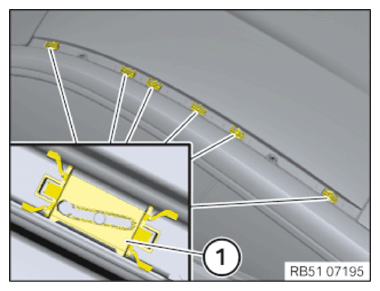

- Check whether the clamps (1) are present and have damage.
- Defective or missing clamps (1) need to be replaced.

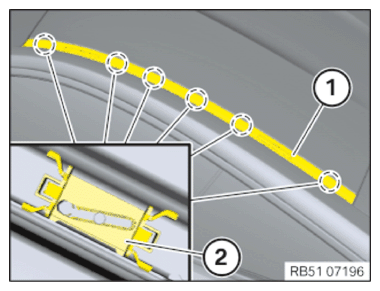

- Carefully attach the roof trim strip (1) and clip it in at the clips (2) starting at the rear.
