Install the right front-end strut
Install the right front-end strut

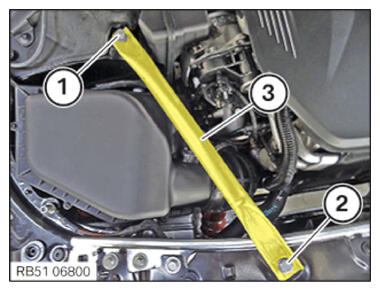

- Install the front-end strut (3).
NOTE:
RISK OF DAMAGE
Use of an incorrect tool (impact screwdriver) to release and tighten the screws.
Damaged thread.
Use of an incorrect tool (impact screwdriver) to release and tighten the screws.
Damaged thread.
- Only use a standard tool (e.g. reversible ratchet) to release/tighten the screws.
- Clean the thread at shock tower.
- Replace screws (1) and (2).
Parts: Screws
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Front-end strut to cross connection | ||
|---|---|---|
| Hexagon screw Replace screw. |
Tightening torque | 28 Nm |
| Angle of rotation | 90° | |
- Tighten down screw (2).
TIGHTENING TORQUE SPECIFICATIONS
| Front-end strut on wheel well | ||
|---|---|---|
| Hexagon screw Replace screw. |
Tightening torque | 56 Nm |
| Angle of rotation | 90° | |
- Repair the damaged thread on the shock tower with a Helicoil insert.
CONSUMABLE SPECIFICATIONS
| Helicoil thread insert | M10x30 mm 07129909659 |
