Install the bottom front right side cover
Install the bottom front right side cover
NOTE:
Only perform the operation on the right side.

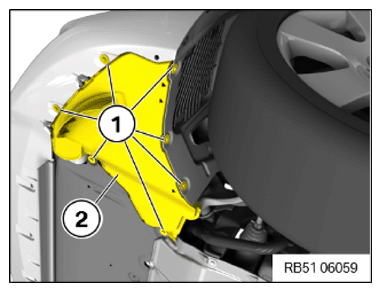

Guide in cover, front, bottom, side (2) front, bottom.
Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
Front lower side cover on front bumper cover
Hexagon screw for thermoplastic
Tightening torque
3 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
