Install right door sill trim panel
NOTE:
Description is for left component only. Procedure on the right side is identical.

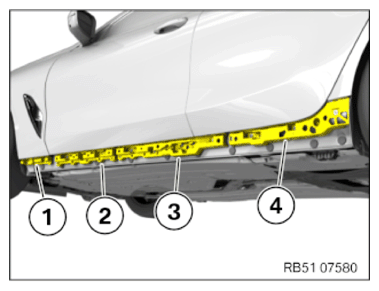

- Check retaining strips (1) to (4) for damage and, if necessary, replace them.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

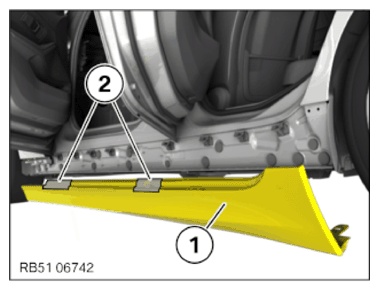

- Stick door sill trim panel (1) in areas (2) with adhesive tape.
- Position door sill trim panel.

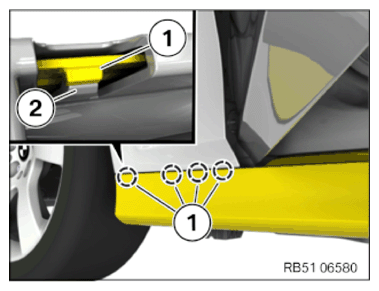

- Clip the door sill trim panel into the front retaining strip (2) with detents (1).

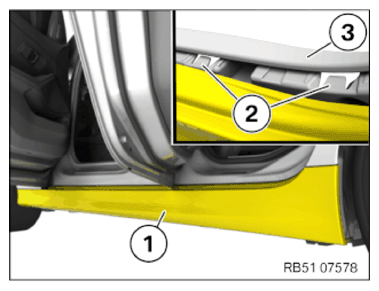

- Clip door sill trim panel (1) continuously to the rear into detents (2) of retaining strip (3).
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

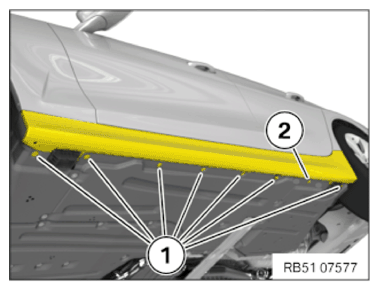

- Tighten nut (2).
TIGHTENING TORQUE SPECIFICATIONS
| Undershield to door sill trim panel | ||
|---|---|---|
| Plastic nut Coarse thread | tightening torque | 3 Nm |
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Undershield to door sill trim panel | ||
|---|---|---|
| Hexagon screw for thermoplastic | tightening torque | 3 Nm |
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

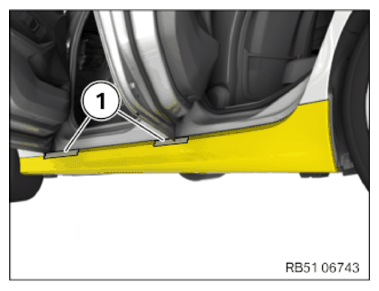

- Remove the adhesive tape (1).
