Install rear section of the front right wheel arch cover
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install the rear section of the front wheel arch cover
NOTE:

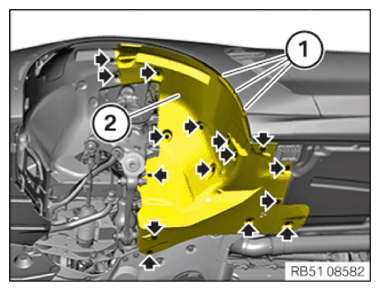

To provide a better overview: Schematic diagram with partially hidden components.
- Guide in rear section (2) of the front wheel arch cover.
- Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Wheel arch cover (screws) | ||
|---|---|---|
| Thermoplastic hexagon screw | Tightening torque | 3 Nm |
- Secure expanding rivet (1).
