Install headlight

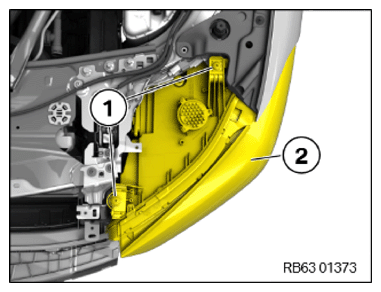

- Feed in the headlight (2) from the front and position.
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Front light combination, top | ||
|---|---|---|
| Oval-head screw | Tightening torque | 8 Nm |

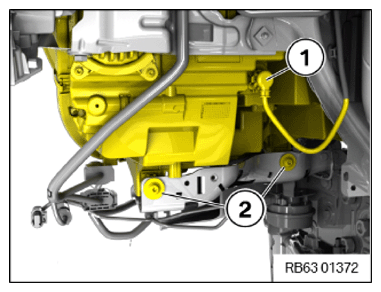

- Tighten down screws (2).
TIGHTENING TORQUE SPECIFICATIONS
| Front light combination, bottom | ||
|---|---|---|
| Oval-head screw | Tightening torque | 5 Nm |
- Connect connectors (1) and lock.
