Install clean air pipe, top
WARNING:
Hot surfaces.
Risk of burning!
- Perform all work only on components that have cooled down.

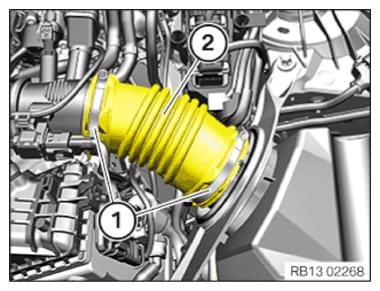

- Feed in top clean air pipe (2) and install.
- Tighten clamps (1).
TIGHTENING TORQUE SPECIFICATIONS
| Upper clean air pipe to lower clean air pipe |
| Hose clamp |
Tightening torque |
3 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
