If installed: Release the wiring harness

Releasing the wiring harness of the HSR actuator

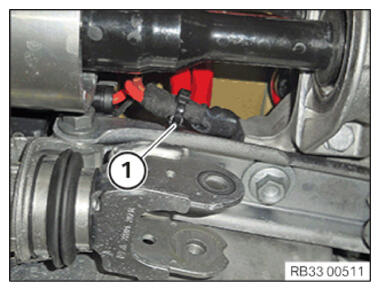

• Detach the wiring harness (1) from the HSR actuator.

  Courtesy of BMW OF NORTH AMERICA, INC.

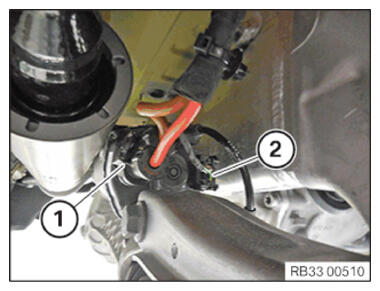

• Unlock and disconnect the plug connections (1) and (2).
• Detach the wiring harness from the rear axle support.

  Courtesy of BMW OF NORTH AMERICA, INC.
