If installed: Release the cable

Disconnect the cable of the active stabilizer

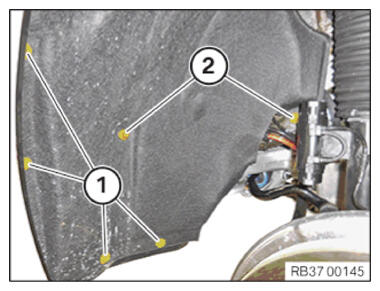

• Loosen the screws (1) and the nuts (2) of the rear right wheel arch trim panel at the rear.

  Courtesy of BMW OF NORTH AMERICA, INC.

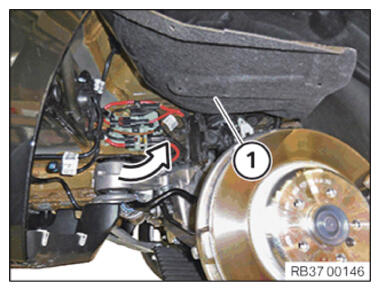

• Fold in the wheel arch trim panel (1) in the arrow direction towards the top.

  Courtesy of BMW OF NORTH AMERICA, INC.

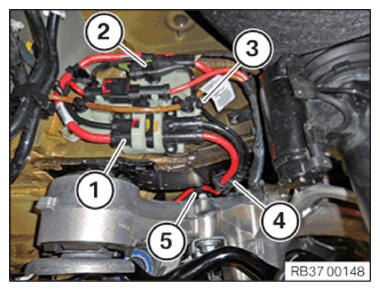

• Unlock and disconnect the plug connection (1) and release from the holder.
• Unlock and disconnect the plug connection (2) and release the cable from the holder (3).

  Courtesy of BMW OF NORTH AMERICA, INC.
