If installed: Disconnecting the plug connections on the servomotor of the rear axle differential
If installed: Disconnecting the plug connections on the servomotor of the rear axle differential
Disconnecting the plug connections on the servomotor of the rear axle differential

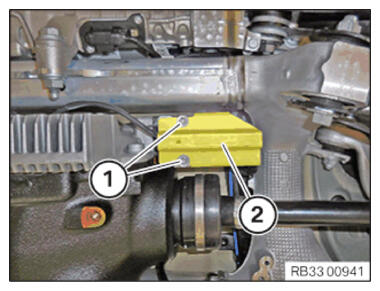

Loosen screws (1).
Release and remove the heat shield (2) from the cable.
Courtesy of BMW OF NORTH AMERICA, INC.

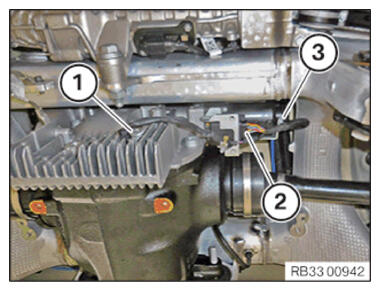

Unlock and disconnect the plug connections (1) and (2).
Release cable from holder (3).
Courtesy of BMW OF NORTH AMERICA, INC.
