For continuing work on the front seat: Mount the front seat on the universal seat mount and connect with the wiring harness if necessary
NOTE:
TECHNICAL INFORMATION
Use of the universal seat mount is recommended for carrying out expert repairs.
Use of the universal seat mount is recommended for carrying out expert repairs.

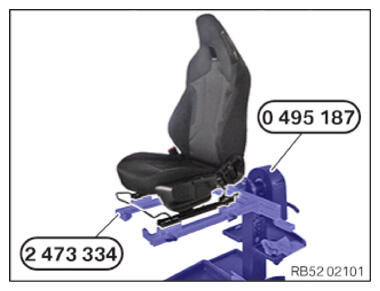

- Fit special tool 2 473 334 onto special tool 0 495 187 (00 2 300) .
CAUTION:
Heavy component.
Heavy components can lead to injury or damage.
Heavy components can lead to injury or damage.
- Remove and install heavy components with the aid of another person/other persons.
- Mount the front seat onto the special tool 2 473 334 .
To ensure a professional repair, it is recommended to use the special tool 0 495 187 (00 2 300) and 2 473 334 .
NOTE:
TECHNICAL INFORMATION
Only use the following steps if the front seat has to be adjusted electrically.
Only use the following steps if the front seat has to be adjusted electrically.

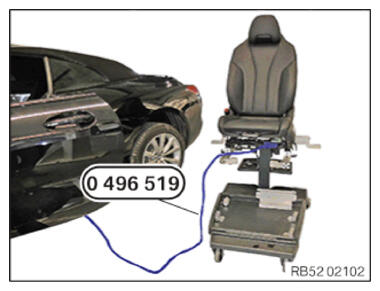

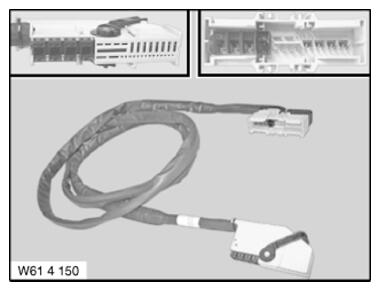

- In order to adjust the front seat in a removed state, connect the special tool 0 496 519 (61 4 150)
with the vehicle wiring harness and the removed front seat.
- Connect special tool 0 496 519 (61 4 150) to the wiring harness of the vehicle and the removed front seat to adjust the front seat.
