Fastening the spring strut onto the wheel carrier

NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .

• Align the spring strut correctly with the wheel carrier.
• Position the wheel carrier on the spring strut.

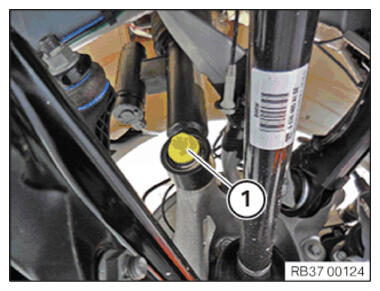

• Replace the screw (1).

  Parts:  Screw

• Tighten the screw (1) in NORMAL POSITION .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Rear spring strut to wheel carrier
M16 Replace screw. Tighten in normal position.	tightening torque	250 Nm
