Disconnect the refrigerant line from the expansion valve

CAUTION: Residual pressure in the heating and air conditioning system.
Injury hazard!

• Wear safety goggles and protective gloves when disconnecting the refrigerant line.
• Close the refrigerant lines with seal plugs.

• Open the holder (1).

Courtesy of BMW OF NORTH AMERICA, INC.

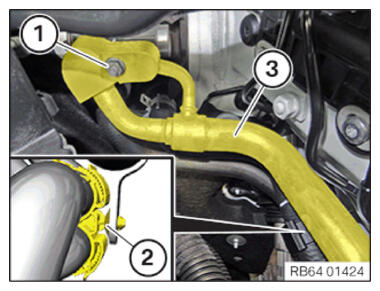

• Release the nut (1).
• Disengage the hose support (2).
• Remove the refrigerant line (3) and set it aside.

Courtesy of BMW OF NORTH AMERICA, INC.
