Checking the hydraulic fluid level of the convertible top drive unit's hydraulic unit

Precondition

Open and close convertible top completely twice.

The convertible top is closed.

Remove luggage compartment floor covering

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

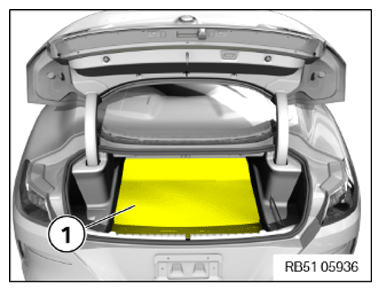

Remove the luggage compartment floor covering (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the loading edge trim

Open hook and loop tape (1) and remove the warning triangle (2).

Courtesy of BMW OF NORTH AMERICA, INC.

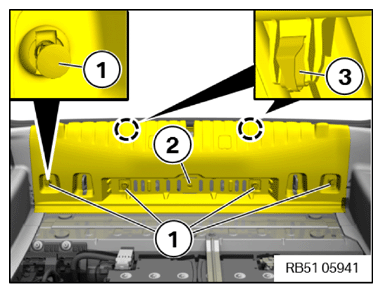

Loosen the expanding rivet (1).
Loosen screw (2).
Unclip loading edge trim upwards from detents (3).
Guide the loading edge trim beneath the sealing lip of the tailgate seal and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.

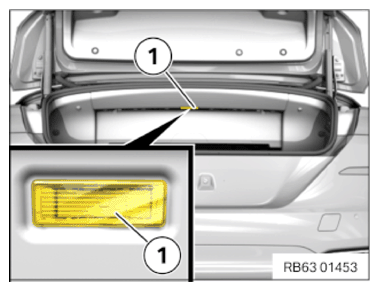

Remove trunk compartment light

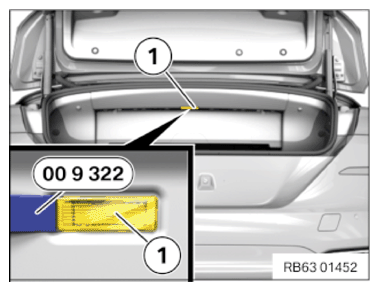

Unclip luggage compartment lamp (1) with special tool 0 490 539 (00 9 322) .

Courtesy of BMW OF NORTH AMERICA, INC.

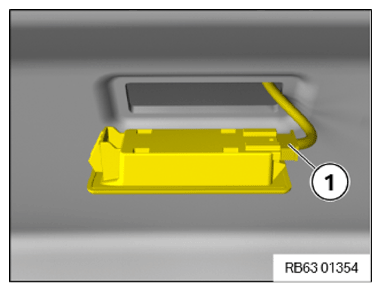

Unlock plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the upper luggage compartment trim panels

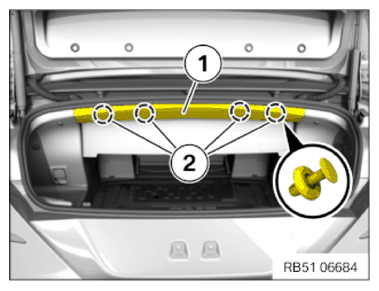

Loosen the expanding rivet (2).
Remove the upper luggage compartment trim panels (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Removing right luggage compartment wheel arch trim panel

NOTE: Description is for left component only. Procedure on the right side is identical.

Luggage compartment wheel arch trim panel

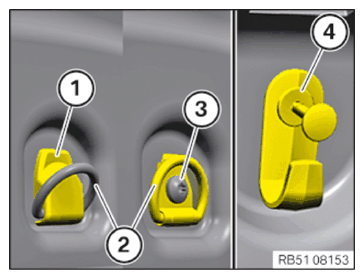

Unclip covers (1) of lashing eyes (2).
Release screws (3) of lashing eyes (2).
Open expanding rivet (4) of bag hook.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

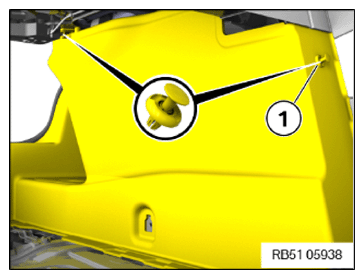

Loosen the expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

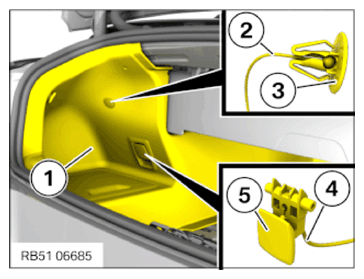

Unclip the emergency release (3) and detach the Bowden cable (2).
Remove the remote backrest unlocking (5) with a suitable tool from the luggage compartment wheel arch trim panel (1).
Detach the Bowden cable (4).

Courtesy of BMW OF NORTH AMERICA, INC.

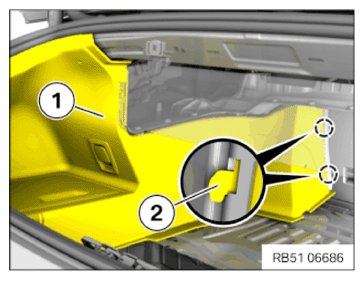

Feed out the luggage compartment wheel arch trim panel (1) from the front guides (2) and remove it.
Feed out the luggage compartment wheel arch trim panel (2) under the sealing lip of the tailgate seal and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the emergency release handle for the tailgate (additional work for US version)

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

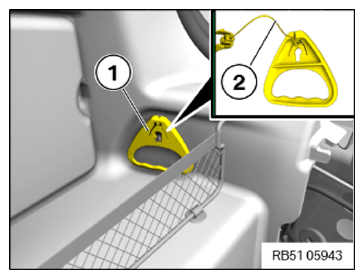

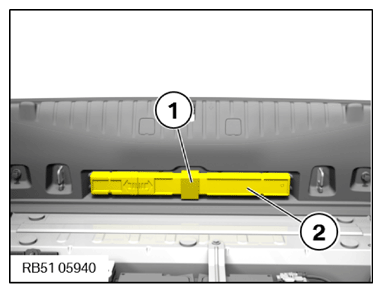

Loosen the emergency release handle (1) for the tailgate from the holder.
Detach the Bowden cable (2) and remove the emergency release handle (1) for the tailgate.

Courtesy of BMW OF NORTH AMERICA, INC.

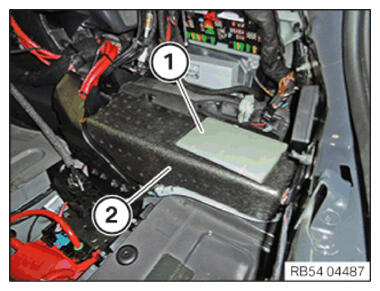

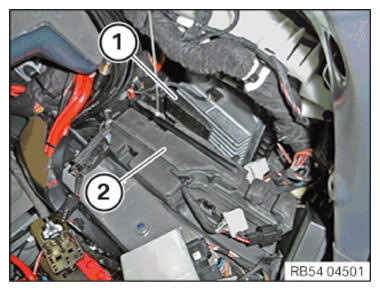

Pull the control unit (1) out of the foam backing (2).

Courtesy of BMW OF NORTH AMERICA, INC.

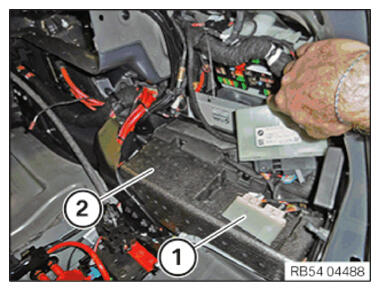

Pull the control unit (1) out of the foam backing (2).
Feed out the foam backing (2).

Courtesy of BMW OF NORTH AMERICA, INC.

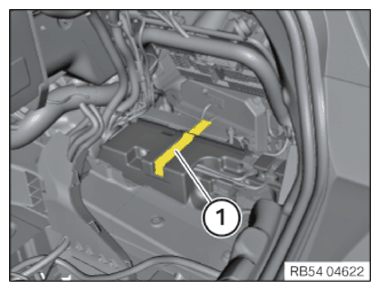

Open the retaining strap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

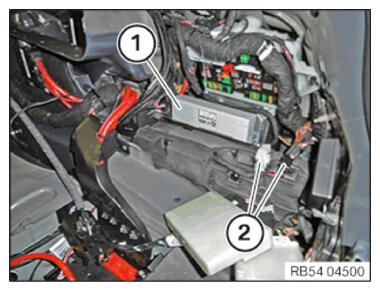

Feed out the control unit (1), unlock the existing plug connections and disconnect them.
Unfasten plug connections (2).

Courtesy of BMW OF NORTH AMERICA, INC.

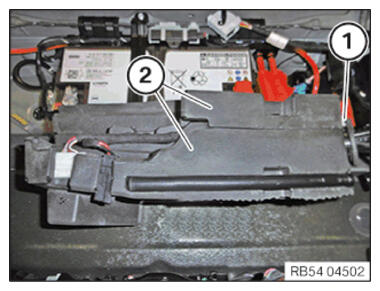

Feed out the foam backing (1).
Feed out the hydraulic unit (2) and place it in the trunk.

Courtesy of BMW OF NORTH AMERICA, INC.
Release cable tie (1).
Remove the hydraulic unit from the sound insulation (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Check

Protect the working area from escaping hydraulic fluid.

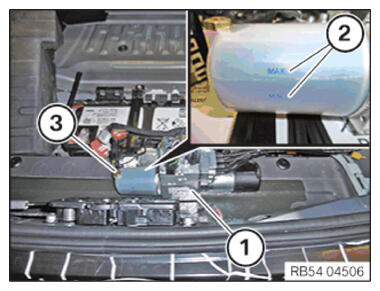

Place the hydraulic unit (1) horizontally in the trunk.
Open and close convertible top completely twice.
With the convertible top closed, the oil level must be within the mark (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Oil level outside of the mark (2).

Measure

Undo the screw (3) and correct the oil level.

Insert the hydraulic unit into the sound insulation (2).
Secure cable tie (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in hydraulic unit (2) and position it.
Feed in foam backing (1) and position it.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert existing connectors on the control unit (1) and lock them.
Feed in control unit (1) and position it.
Connect connectors (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Close the retaining strap (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in foam backing (2) and position it.
Insert the control unit (1) into the foam backing (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert the control unit (1) into the foam backing (2).

Installing the luggage compartment wheel arch trim panel on the right

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the emergency release handle for the tailgate (additional work for US version)

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Attach the Bowden cable (2).
Fasten the emergency release handle (1) for the tailgate to the holder.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing luggage compartment wheel arch trim panel

Insert the luggage compartment wheel arch trim panel (1) and feed it into the front guides (2).
Feed in the luggage compartment wheel arch trim panel (1) in the rear area below the sealing lip of the tailgate seal.

Courtesy of BMW OF NORTH AMERICA, INC.

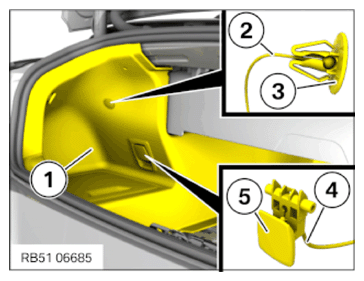

Attach the Bowden cable (4).
Install the backrest remote unlocking (5) in the luggage compartment wheel arch trim panel (1).
Hook the Bowden cable (2) and clip in the emergency unlocking (3).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
Secure expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Secure the multifunction hook with the expanding rivet (4).
Tighten screws (3) of lashing eyes (2).

TIGHTENING TORQUE SPECIFICATIONS

Lashing point to body
M8 screw	Tightening torque	19 Nm

Clip in covers (1) of lashing eyes (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the top luggage compartment trim panel

Position the top luggage compartment trim panel (1).
Secure expanding rivet (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Install trunk compartment light

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Clip in the trunk compartment light (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing loading edge trim

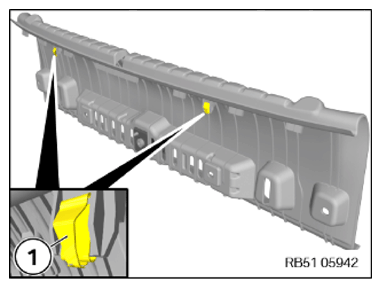

Check clamps (1) for damage and, if necessary, replace them.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed the loading edge trim under the sealing lip of the trunk lid seal.
Fit the trim of the loading edge at the detents (3) and clip it in to the bottom.
Tighten down screw (2).

TIGHTENING TORQUE SPECIFICATIONS

Loading edge trim to body
Oval-head screw with collar M4	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Secure expanding rivet (1).
Insert warning triangle (2) and fix it with hook and loop tape (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Install luggage compartment floor covering

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Insert the luggage compartment floor panel (1).

Courtesy of BMW OF NORTH AMERICA, INC.
