Adjust the LED module for the light carpet

NOTE: Description is for left component only. Procedure on the right side is identical.

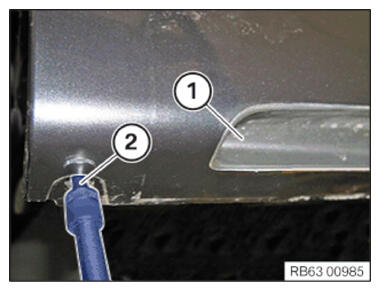

• Adjust the LED module (1) by turning the adjustment screw (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

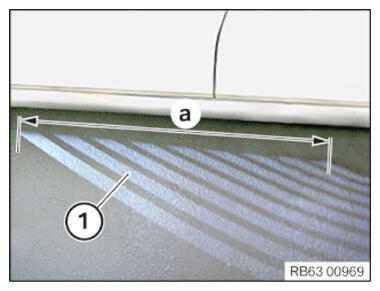

• Adjust the light carpet (1) to the specified length dimension (a).

TECHNICAL DATA SPECIFICATIONS

Light carpet length
	Length (a)	130 cm

Courtesy of BMW OF NORTH AMERICA, INC.
