Securing upper wishbone, right, at the swivel bearing

NOTE: Description is for left component only. Procedure on the right side is identical.

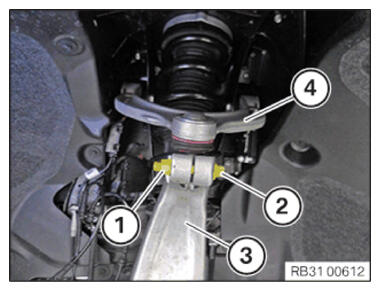

Position the wishbone pin (4) in the bore of the swivel bearing (3).
Replace the screw (2) and the nut (1).
Parts: Screw, nut
Install the bolt (2).
Tighten the screw connection using the nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.
