Removing the right side hood seal
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the lateral hood seal

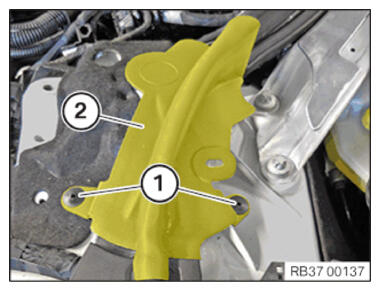

- Loosen the rivet (1).
- Remove the lateral hood seal (2) from the shock tower.
