Removing the right hand front bottom side cover
Removing the right hand front bottom side cover
NOTE:
Only perform the operation on the right side.

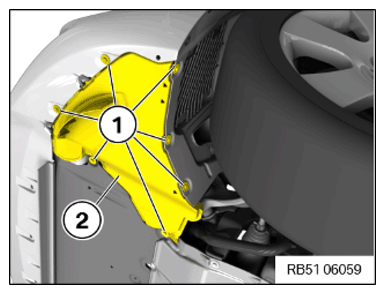

Loosen screws (1).
Guide out cover, front, bottom sideways (2) downwards.
Courtesy of BMW OF NORTH AMERICA, INC.
