Removing the retaining bridge
Removing the acoustic cover
NOTE:
RISK OF DAMAGE
Damage to the acoustic cover/design cover.
Jerky movements during disassembly and application of excessive force during installation may result in breakage of the acoustic cover/design cover.
Damage to the acoustic cover/design cover.
Jerky movements during disassembly and application of excessive force during installation may result in breakage of the acoustic cover/design cover.
- Disassemble or mount the acoustic cover/design cover carefully.
- Disassemble or mount snap-lock couplings of the ball pivots one after the other.
- Disassemble or mount the acoustic cover/design cover only at temperatures > 20°C.
- Use only distilled water as an auxiliary material during installation, no lubricants.
- Version with clip:

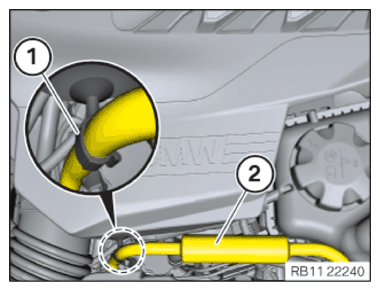

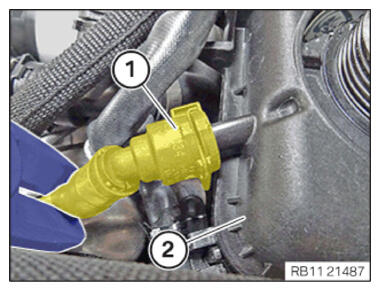

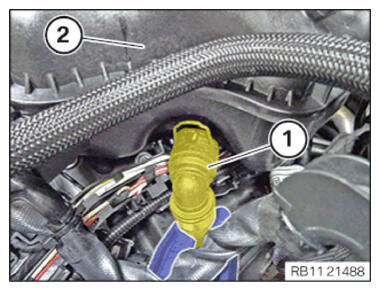

Unclip the tank vent line (2) at the clamp (1).

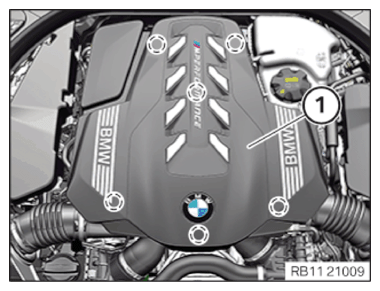

- Release the acoustic cover (1) upwards out of the rubber mounts (markings).
Removing the cover panel of the left DME control unit

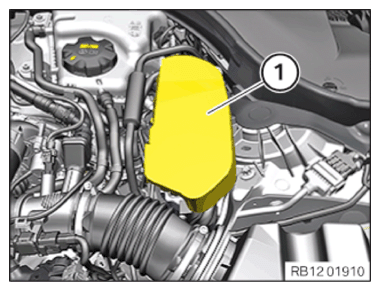

- Remove the cover (1) and pull it up.
Removing the control unit bracket for cylinders 5 to 8
NOTE: RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .
NOTE: TECHNICAL INFORMATION
Follow instructions for removing and installing control units.
For additional information see: INSTRUCTIONS FOR REMOVAL AND REPLACEMENT OF CONTROL UNITS .NOTE: TECHNICAL INFORMATION
If control units are disconnected, fault memory entries and functional limitations may occur.

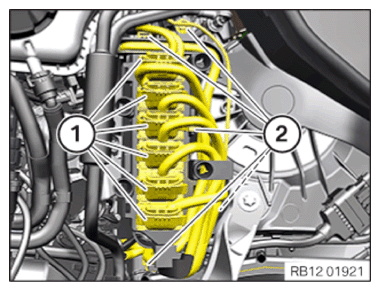

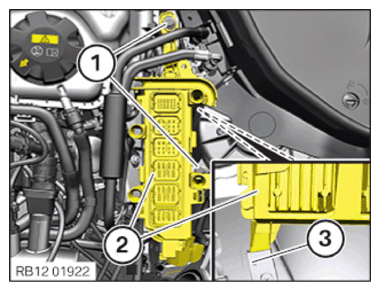

The fault memory entries must be read out and, if necessary, deleted. - Unlock and disconnect all plug connections (1).
- Disconnect all clamps (2).
- Loosen screws (1).
- Guide out and remove control unit bracket (2) with the DME control unit upwards out of holder (3).

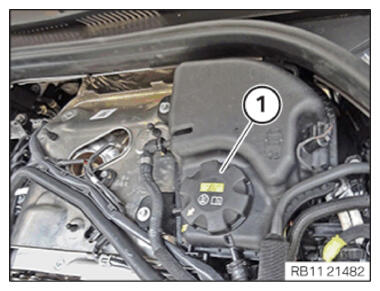

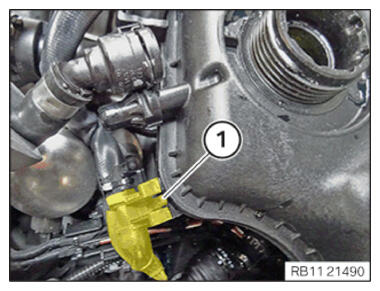

- Loosen the sealing cap (1) from the coolant expansion tank.

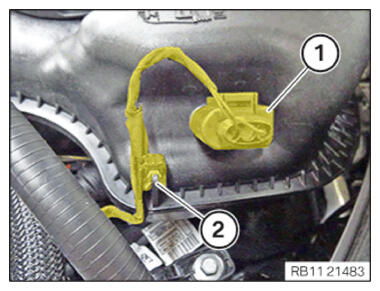

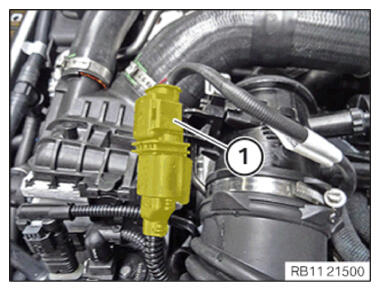

- Unlock plug connection (1) and disconnect.

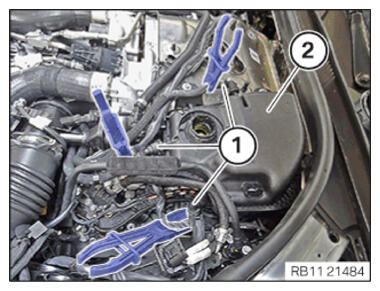

- Disconnecting the coolant hoses (1) from the coolant expansion tank (2) with standard clamping pliers.

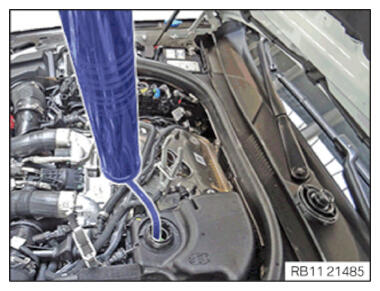

- Draw off the coolant with a standard syringe.

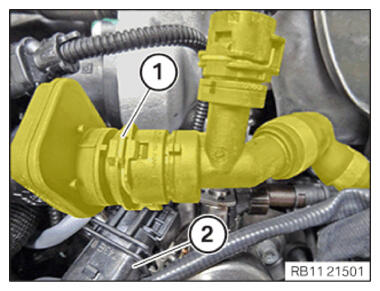

- Unlock and disconnect the coolant line (1) from the coolant expansion tank (2).
- Unlock and disconnect the coolant line (1) from the coolant expansion tank (2).
- Unlock and disconnect the coolant line (1) from the coolant expansion tank (2).

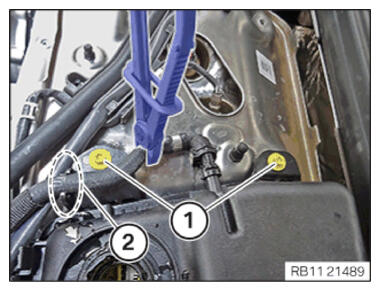

- Loosen screws (1).
- Unclip the coolant line from the bracket in the region (2).

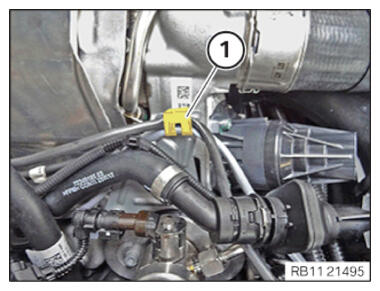

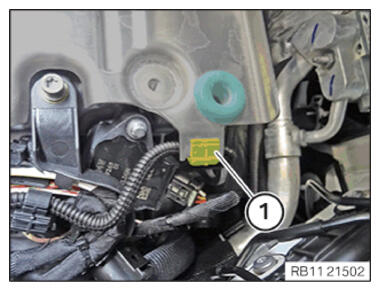

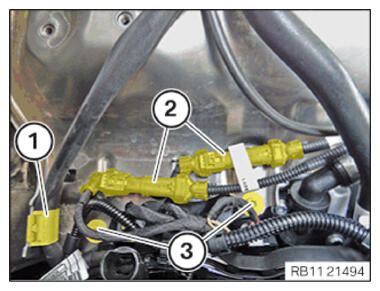

- Release the wiring harness mounting at the snap-in lug (1) and put it aside.
- Remove the coolant expansion tank.

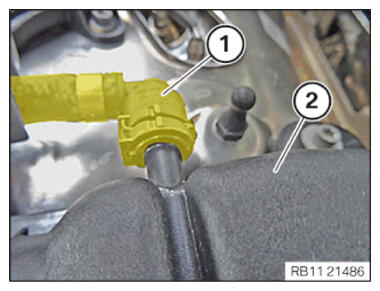

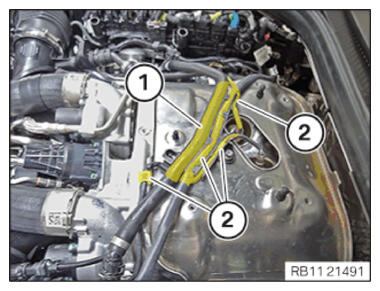

- Working upwards, unclip the engine ventilation line (1).
- Unclip the wiring harness from the attachments (2).
- Loosen screws (1).
- Unclip the transmission wiring harness from the bracket (1).
- Unclip the plug connector (2) upwards from the heat shield.
- Loosen screws (3).

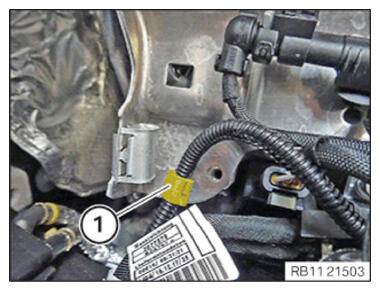

- Unclip the Lambda oxygen sensor cable from the bracket (1).
- Unlock and disconnect the engine ventilation line from the retaining clip in the region of (1).

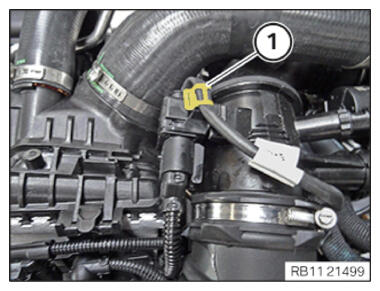

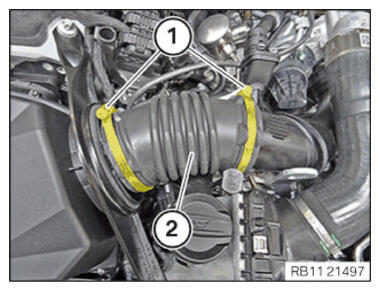

- Release the hose clamps (1).
- Remove the bellows (2).
- Unlock plug connection (1) and disconnect.
- Unclip the cable of the Lambda oxygen sensor from the bracket (1).

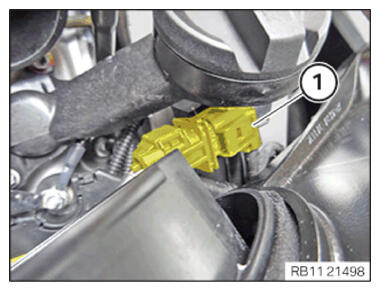

- Unlock plug connection (1) and disconnect.

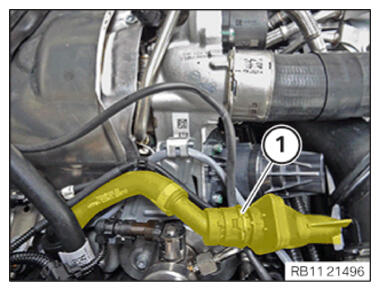

- Unlock and disconnect the engine ventilation line from the retaining clip in the region of (1).
- Feed the connector (2) of the Lambda oxygen sensor through.

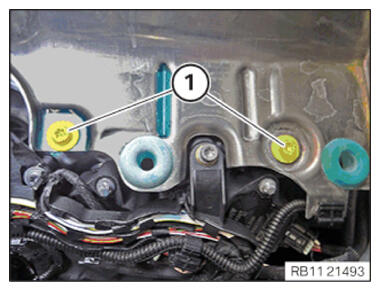

- Unclip wiring harness mounting (1) from the retaining bridge.
- Unclip wiring harness mounting (1) from the retaining bridge.
- Remove the retaining bridge upwards.
